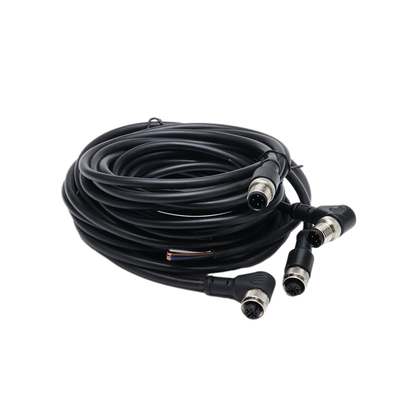

Straight Single Ended Pigtail Waterproof Cable Assemblies With 1M BK PVC Jacket 4C×AWG22
Product Details:
| Place of Origin: | China |
| Brand Name: | RCH |
| Certification: | IATF16949;ISO9001 |
| Model Number: | M12007 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | USD0.5-10/pcs |
| Packaging Details: | PE bag packing |
| Delivery Time: | 5-35 work days |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 100000pcs per week |
|
Detail Information |
|||
| Length: | 1M Or Custom | Color: | Black |
|---|---|---|---|
| Jacket: | PVC Or Other | Customization: | OEM/ODM Accepted |
| Warranty: | 12 Month | Working Temperature: | -40°C~+85°C |
| MOQ: | 100pcs | Application: | Automotive, Machine, Robot Etc |
| Highlight: | AWG22 Waterproof Cable Assemblies,Straight Waterproof Cable Assemblies,PVC pigtail cable assembly |
||
Product Description
1M BK PVC Jacket 4C*AWG22 Straight Single Ended Cable Harness M12 Waterproof Electrical Cable
STA/CAZN specializes in providing M5, M8, M12, M16, M23, 5/8, 7/8 European standard circular connectors.
M12 Features:
1: 2,3,4,5,6,8,12,17 poles are available.
2: Cording: A-code, B-code, C-code, D-code, X-code, S-Code, T- Code
3: Screw connection/ Solder connection.
4: Shielded/ ordinary.
5: Circular connector with M12*1 screw locking.
6: Degree of protection IP 67.
7:Ambient temperature -40°C ~80 °C .
8:Plug design as per IEC61076-2-101
| No. of contacts | 2 | 3 | 4 | 5 | 6 | 8 | 12 | 15 | 17 |
| Rated current/voltage | 5A-260v | 5A-260v | 5A-260v | 5A-200V | 5A-200V | 5A-200V | 3A-200V | 3A-150V | 3A-150V |
| Opertaion limit voltage | 200 | 200 | 200 | 125 | 125 | 125 | 125 | 125 | 125 |
| Withstanding vlotage 1 minute | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Insulation resistance at DC 500V | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Contact resistance At DC 1A | 5 | 5 | 5 | 5 | 5 | 5 | 10 | 10 | 10 |
| Solder cup mouth aperature | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 0.8 | 0.8 | 0.8 |
| Solder inter OD | 1 | 1 | 1 | 1 | 1 | 1 | 0.6 | 0.6 | 0.6 |
We can produce series of wire harnesses:
| 1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly |
| 2.Electrical cable and wire harness |
| 3.Audio,Video,Radio cable and iso wire harness |
| 4.Industrial wire cable harness |
| 5.Home appliance wire harness |
| 6.Fuse wire ,game machine wire harness |
| 7.Power,LVDs,Flat RCA,USB cable harness |
| 8.Control and panel wiring cable assemblies |
| 9.Medical equipment cable and harness |
| 10.Airplane models wire harness |
Product family tree and application ranges
We have full series product for your choice, below picture will help you a lot to understand this.
M5: 3pin 4pin;
M8: 3pin 4pin 6pin 8pin ;
M12: 2pin 3pin 4pin 5pin 6pin 7pin
8pin 9pin 10pin 11pin 12pin 13pin 14pin
15pin 16pin 17pin,
M12 code:A code B code C code D code
S code T code l code K code X code Y
code M code.
Company Quick Tour
Since its establishment, Dongguan Rich Electronics Technology Co.,Ltd. has been focusing on the research,
development, production, and sales of connectors, connecting wires, and wiring harness products. Committed
to providing high-qualityproducts, low prices, and high-quality services to our new and old customers.
The company produces waterprrof cables,connecting cables, electroniccables, terminal cables, automotive
wiring harnesses, silicone cables, cables, DC cables,power cables, flat cables (gray, red and white,
blue and white, color rehearsal, soft cable), USB data cable charging cables,physical therapy instrument
wiring harnesses, HDMI high-definition signal cables, LVDS screen cables, VGA signal cables,
SATA serial port cables, etc.
Our products are widely used in intelligent robots, new energy vehicles, new energy batteries,
smart homes, medical treatment instruments, beauty instruments, photoelectric therapy instruments,
mobile digital products, intelligent wearables, tablets, drones,household appliances, office appliances,
electric toys, electric tools, industrial electronic devices, digital audio and video products,computer
peripherals, solar products, intelligent security monitoring, intelligent self-service devices, advertising
machines LED screens, LED lighting fixtures, and other fields. The company has senior technical
engineering and quality managementpersonnel, complete equipment, strong production capacity,
and can provide customers with product design solutions and produce high-quality and affordable
products according to their needs. Continuously developing and innovating products, creating product
value, has always been the consistent business philosophy of Sanjing. The principles of quality first,
customer oriented, and common growth have been widely praised and affirmed by customers.
Looking forward to your inquiry, we will be happy to serve you.
Payment and delivery option
1.FedEx/DHL/TNT/UPS/EMS/Aramex/SFfor samplesDoor-to-Door;
2. By Air or by Sea for batch goods;Airportport receiving;
3.Customers specifying freight forwarders or negotiable shipping methods!
4.Delivery Time: 5-10 days for samples; 15-30 days for batch goods
5.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are custom manufacturer, also we are trading company.
Q2: Do you providesamples ? is it free or extra ?
A: Yes,we provide samples for free,but you will pay for the shipping fee.
Q3: How long is yourdelivery time?
A: 5-10 days for sample and 10-30 days for bulk order after payment successful.
Q4: what can you buy from us?
A:Aviation Plug Connector Cables,DC Power Cables,Audio Video Cables,Electrode Connector Cables,Special Spiral
Cables and Special USB cables.
Q5:What's your advantage? Why we choose you?
A:1)Many years experience of connector cable production and R&D.We have theprofessional techniques and team.
2) All-chain machinery and equipment and the most comprehensive supply chain of raw materials.
3) Good quality service, small quantity or large quantity both are fine.
