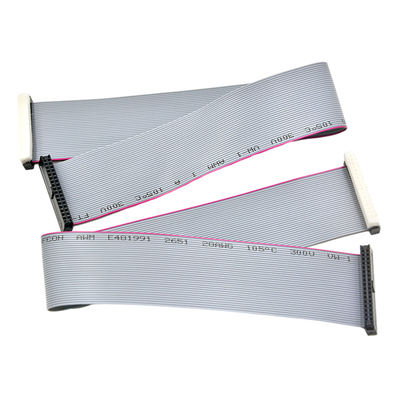

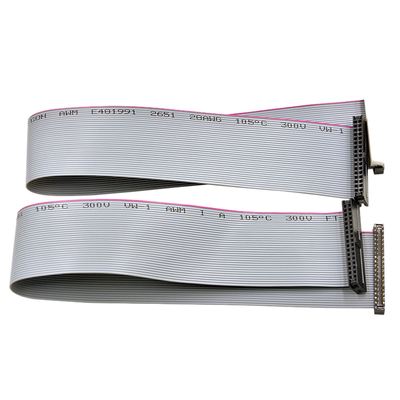

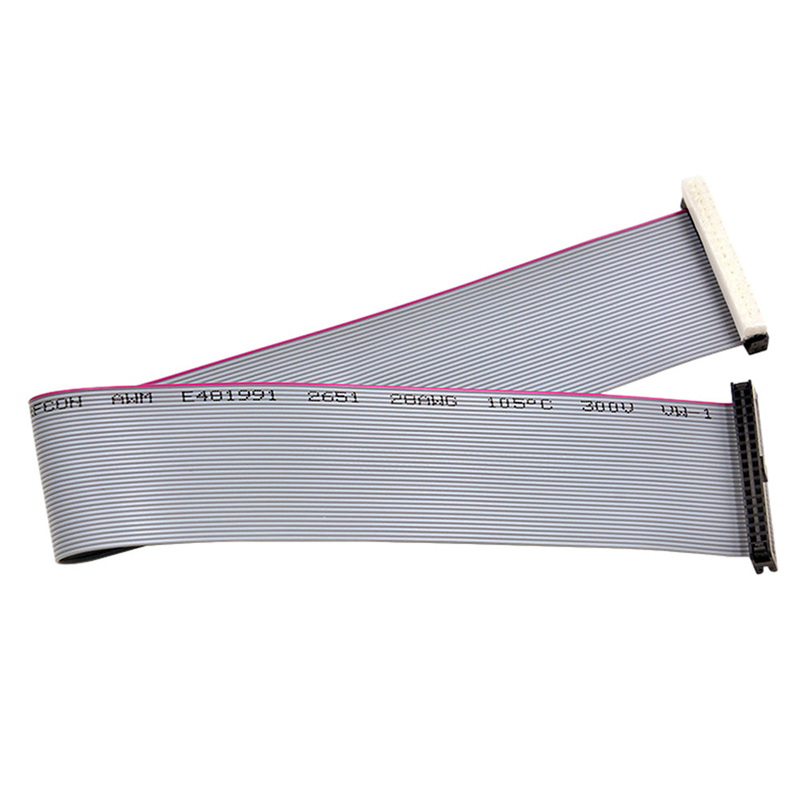

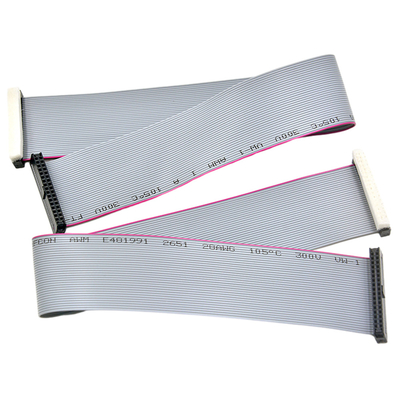

2.0mm Flat IDC Ribbon Cable Assembly 04P IDC To 64P IDC For Computer Automotive
Product Details:
| Place of Origin: | China |
| Brand Name: | RCH |
| Certification: | UL, CSA, RoHS, REACH |
| Model Number: | IDC254001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.05 |
| Packaging Details: | 100pcs per bag |
| Delivery Time: | 2 to 4 weeks |
| Payment Terms: | TT, Paypal |
| Supply Ability: | 100K per week |
|
Detail Information |
|||
| Pitch: | 2.0mm, 2.54mm, 3.96mm, 5.08mm | Wire Gauge: | 28AWG-24AWG |
|---|---|---|---|
| Number Of Contacts: | 2-64 | Product Name: | IDC Cable Assemblies |
| Temperature Range: | -40℃~+105℃ | Insulation Material: | PVC, PE, Nylon |
| Cable Type: | UL1007, UL1015, UL2464, UL2468 | ||
| Highlight: | Flat IDC Ribbon Cable Assembly,2.0mm IDC Ribbon Cable Assembly,idc ribbon cables 04P |
||
Product Description
Manufacturer 2.0mm IDC Flat Ribbon Cable Assembly 04P IDC To 64P IDC Flat Cable Assembly
Product Description:
Features:
- Product Name: IDC cable assemblies
- Temperature range: -40℃~+105℃
- Application: Computer, Automotive, Industrial
- Number of contacts: 2-64
- Cable color: Customized
- Insulation material: PVC, PE, Nylon
- Flat cables with 1.27mm pitch
- 1.27mm pitch ribbon cables
Applications:
IDC Cable Assemblies, manufactured by RCH, are available in different connector types, such as 2.54mm pitch, flat cables, and 1.27mm pitch, ribbon cables. The voltage rating of these assemblies ranges from 50V-250V, with a maximum of 2-64 contacts. The cable length and contact number can be customized according to customer requirements. The assemblies are certified by ISO and TS16949, and the minimum order quantity is 1000 pieces. The price per piece is 0.05, and the packaging includes 100pcs per bag. The delivery time is 2 to 4 weeks, and the payment terms are TT and Paypal. The supply ability is 100K per week, and the assembly process includes crimping and soldering.
Technical Parameters:
| Parameter | Content |
|---|---|
| Connector type | IDC |
| Insulation material | PVC, PE, Nylon |
| Cable color | Customized |
| Cable type | UL1007, UL1015, UL2464, UL2468, Flat cables, 2.54mm pitch |
| Cable length | Customized |
| Application | Computer, Automotive, Industrial |
| Current rating | 1A-3A |
| Product name | IDC Cable Assemblies |
| Voltage rating | 50V-250V |
| Certification | UL, CSA, RoHS, REACH |
Customization:
RCH offers a wide range of custom IDC cable assemblies with the following features and specifications:
- Brand Name: RCH
- Model Number: IDC254001
- Place of Origin: China
- Certification: ISO,TS16949
- Minimum Order Quantity: 1000
- Price: 0.05
- Packaging Details: 100pcs per bag
- Delivery Time: 2 to 4 weeks
- Payment Terms: TT, Paypal
- Supply Ability: 100K per week
- Cable type: UL1007, UL1015, UL2464, UL2468
- Current rating: 1A-3A
- Pitch: 2.54mm, 3.96mm, 5.08mm
- Number of contacts: 2-64
- Cable length: Customized
We can produce series of wire harnesses:
| 1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly |
| 2.Electrical cable and wire harness |
| 3.Audio,Video,Radio cable and iso wire harness |
| 4.Industrial wire cable harness |
| 5.Home appliance wire harness |
| 6.Fuse wire ,game machine wire harness |
| 7.Power,LVDs,Flat RCA,USB cable harness |
| 8.Control and panel wiring cable assemblies |
| 9.Medical equipment cable and harness |
| 10.Airplane models wire harness |
Support and Services:
IDC cable assemblies provide technical support and services that include:
- Design and engineering
- Customization
- Testing and certification
- Installation and maintenance
- Training and education
- Product support
- Warranty service
Packing and Shipping:
IDC cable assemblies are securely packaged in boxes and padded to ensure that they arrive safely. Each box contains the necessary instructions for installation and use.
They are then shipped with the most reliable and cost-effective carrier. We use a variety of carriers, including UPS, FedEx, and USPS.
We also offer expedited shipping for customers who need the product quickly.
FAQ:
Q1: What is the Brand Name of the IDC cable assemblies?
A1: The Brand Name of the IDC cable assemblies is RCH.
Q2: What is the Model Number of the IDC cable assemblies?
A2: The Model Number of the IDC cable assemblies is IDC254001.
Q3: Where is the IDC cable assemblies produced?
A3: The IDC cable assemblies is produced in China.
Q4: What Certification do the IDC cable assemblies have?
A4: The IDC cable assemblies have ISO and TS16949 Certification.
Q5: What is the Minimum Order Quantity of the IDC cable assemblies?
A5: The Minimum Order Quantity of the IDC cable assemblies is 1000.
