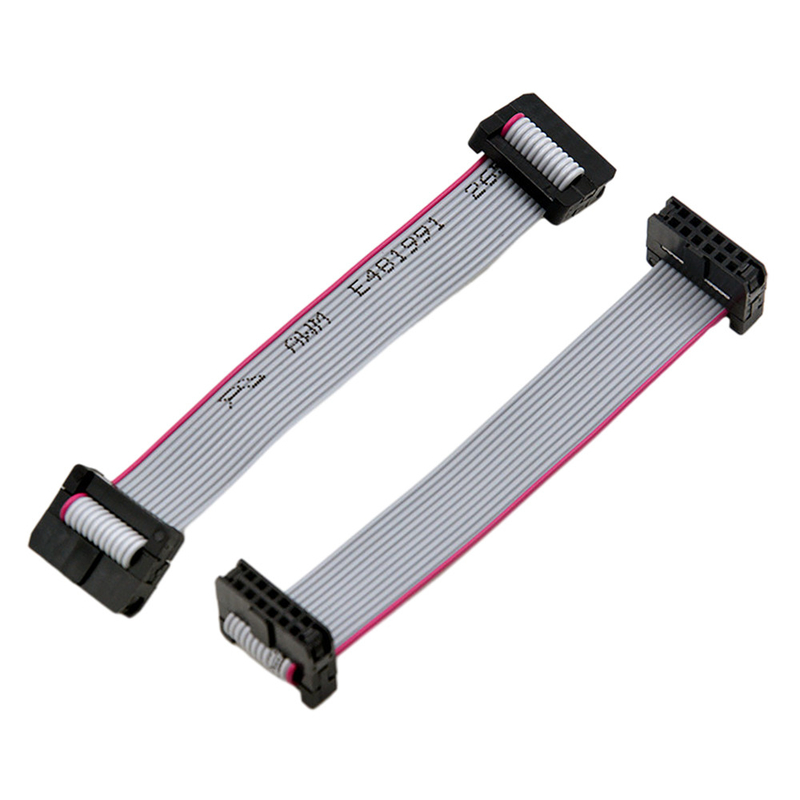

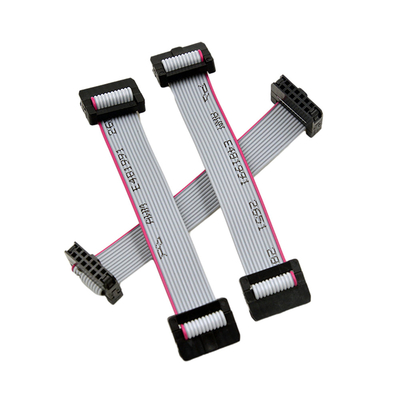

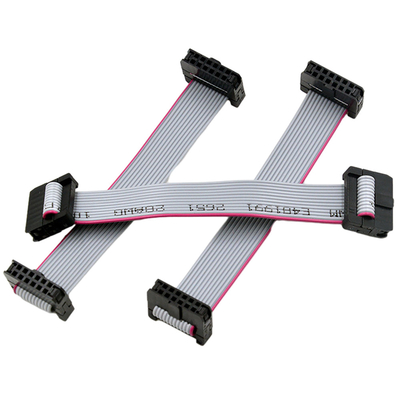

Flat Ribbon IDC Cable Assemblies With 2.00mm Pitch Dual Row 2x3 Pin 6 Pin Connector
Product Details:
| Place of Origin: | Dongguan City,China |
| Brand Name: | RCH |
| Certification: | UL,RoHS, REACH |
| Model Number: | IDC001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | USD0.05 to USD5.0 per pcs |
| Packaging Details: | 100pcs per bag |
| Delivery Time: | 2 to 4 weeks |
| Payment Terms: | TT, Paypal, Western Union |
| Supply Ability: | 100K per week |
|
Detail Information |
|||
| Cable Color: | Black, Grey | Connector Type: | Insulation Displacement Connector |
|---|---|---|---|
| Pitch: | 2.0mm | Temperature Range: | -25℃~+85℃ |
| Cable Length: | 50mm Minimum | Conductor: | OFC Copper, Pure Copper,Tin Plated Copper |
| Insulation Material: | Silicone, PVC, HDPE.,TPE, Etc | ||
| Highlight: | Flat Ribbon IDC Cable Assemblies,6 Pin IDC Cable Assemblies,Dual Row idc flat ribbon cable |
||
Product Description
Pitch 2.00mm Dual Row 2x3 Pin 6 Pin Connector Wire IDC Flat Ribbon Cables
Product Description:
IDC cable assemblies are specialized cables designed for use in high-temperature, high-performance applications. They are constructed from a variety of materials including UL2651, UL2464, UL2468, Silicone, PVC, HDPE, TPE, and , all of which are capable of operating in temperatures ranging from -25℃ to +85℃. IDC cables feature a 2.54mm pitch and are available in flat or round cables, with UL2464 wire, shielded wire, Tin Plated Copper, OFC Copper, and Pure Copper conductors. The cables come in a variety of lengths, with a minimum length of 50mm.
Features:
- Product Name: IDC cable assemblies
- Cable length: 50mm Minimum
- Certification: UL,RoHS, REACH
- Wire gauge: AWG32#-AWG28#
- Pitch: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.50mm,2.54mm, 3.96mm
- Cable type: UL2651, UL2464, UL2468
- Flat cables: Yes
- UL2464 wire: Yes
Applications:
Connectors and connectors are widely used in a variety of electronic products, such as computers, instruments, machines, appliances, cars, color TVs, air conditioners, LED displays, DVDs, and VCDs.
When it comes to these products, connectors and connectors play a very important role in connecting circuits together and ensuring the normal operation of the products.
They are also used to extend the range of a device, helping to reduce power consumption and size of the device itself.
Therefore, connectors and connectors are indispensable components for a variety of electronic products.
Technical Parameters:
IDC finished gray flat cable is perfect for your needs. It features a grey line spacing of 1.27MM, which is also available in 0.635MM, 1.0MM, 2.0MM, and 2.54MM. The grey wire specification consists of 28AWG, but there's also 32AWG, 30AWG, 26AWG, and 24AWG available if needed. It's made with first plated and then twisted tinned copper wire, has a conductor diameter of 0.12 ± 0.005mm and an elongation rate of 18% ↑. The copper core wire conductor is either 7/0.12MM or 7/0.08MM, 7/0.09MM, 7/0.1MM, 7/0.16MM, or 7/0.2MM (7 for 7 strands of copper wire).
The layout color can be a grey with red edge and printing, or you can customize it to be black, yellow, or red! It's conveniently packaged in 10 pieces/bundle, and comes in 250ft (76.5M/roll) or 500ft (153M/roll) rolls. The conductor cross-sectional area is 0.36mm2, the conductor stranding distance is 10.7mm ↓, the insulation thickness is 0.10mm minimum and 0.23mm average, the wire diameter thickness is 0.9 ± 0.05mm, the insulation elongation is 100.00%, and the insulator tensile strength is 1.066Kg/m ² ↑. Additionally, the spark test is 3.0KV/0.15SPC ↑, the Withstand voltage is 2KV 10mA/, the insulation resistance is ≥ 100m ohms/RM ↑, the capacitance is 40PF/M, the impedance is 100 ohms, and the working temperature is -40 ° C~+105 ° C.
The insulation cover is environmentally friendly PVC 45P (RoHS) 8058 gray, with testing requirements that require good appearance (so there should be no injection defects on plastic parts). Additionally, there should be no scratches or deformation on the metal parts, and the on-off performance should meet the specified requirements.
Customization:
- Brand Name: RCH
- Model Number: IDC001
- Place of Origin: Dongguan City, China
- Certification: UL, RoHS, REACH
- Minimum Order Quantity: 500
- Price: USD0.05 to USD5.0 per pcs
- Packaging Details: 100pcs per bag
- Delivery Time: 2 to 4 weeks
- Payment Terms: TT, Paypal, Western Union
- Supply Ability: 100K per week
- Connector type: Insulation Displacement Connector(IDC) with 1.27mm Pitch
- Cable color: Black, Grey
- Application: Electronics, Auto, Industry, Home Applications
- Conductor: OFC Copper, Pure Copper, Tin Plated Copper with UL2464 Wire
Support and Services:
We provide technical support and service for our IDC cable assemblies. Our technical support team is available 24/7 to answer any questions or solve any problems you may have. We also provide free installation and configuration services to ensure that your IDC cable assemblies are installed correctly and up and running quickly. Our team of experienced technicians is always available to provide any assistance you may need.
We can produce series of wire harnesses and various cable assemblies:
| 1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly |
| 2.Electrical cable and wire harness |
| 3.Audio,Video,Radio cable and iso wire harness |
| 4.Industrial wire cable harness |
| 5.Home appliance wire harness |
| 6.Fuse wire ,game machine wire harness |
| 7.Power,LVDs,Flat RCA,USB cable harness |
| 8.Control and panel wiring cable assemblies |
| 9.Medical equipment cable and harness |
| 10.Airplane models wire harness |
Packing and Shipping:
IDC cable assemblies are packaged in protective plastic bags and then stored in durable cardboard boxes to prevent damage during shipping. The boxes are sealed with packing tape and clearly labeled with the contents and destination. We use the most reliable and cost-effective shipping method to deliver the product on time.
