Industrial Printed Circuit Board Connectors With 2.00mm 2.54mm Pitch Pin Header
Product Details:
| Place of Origin: | Dongguan City,China |
| Brand Name: | RCH |
| Certification: | IATF16949;ISO9001 |
| Model Number: | PCBC001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | USD0.05 to USD5.0 per pcs |
| Packaging Details: | 1000pcs/Bag |
| Delivery Time: | 2 to 4 weeks |
| Payment Terms: | TT, Paypal, Western Union |
| Supply Ability: | 300000 per week |
|
Detail Information |
|||
| Mounting Type: | Through Hole/Surface Mount | Application: | PCB, Machinery Equipment |
|---|---|---|---|
| Gender: | Male Or Female | Insulator Material: | PA, PBT, LCP |
| Operating Temperature: | -40℃ To +105℃ | Number Of Contacts: | 2-100 |
| Contact Plating: | Gold-flash/Tin-plated | Connector Type: | PCB Connector |
| Highlight: | Printed Circuit Board Connectors 2.54mm,Printed Circuit Board Connectors 2.00mm,Industrial 2.54 mm pitch connector |
||
Product Description

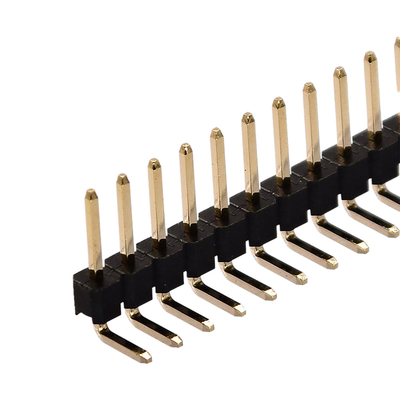

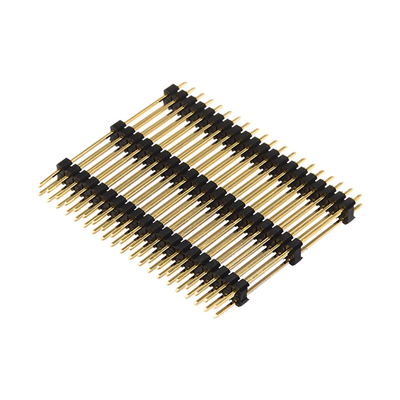

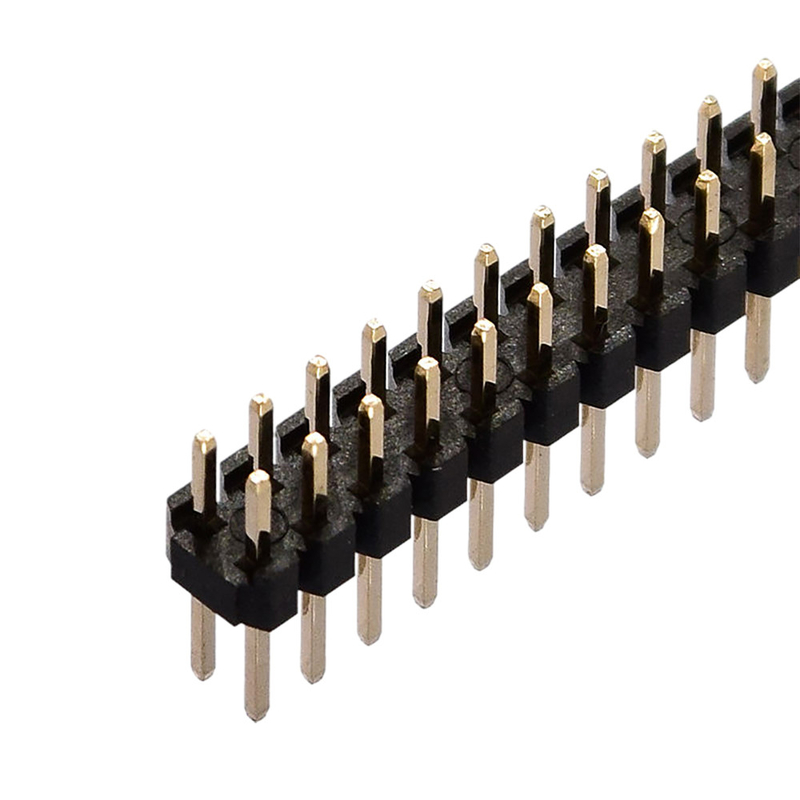

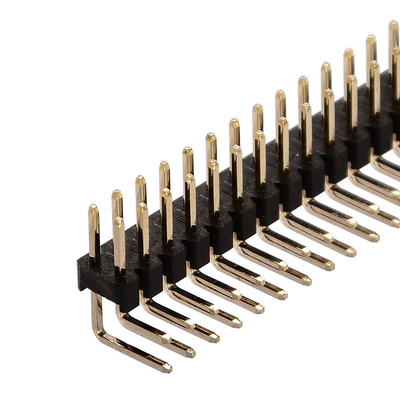

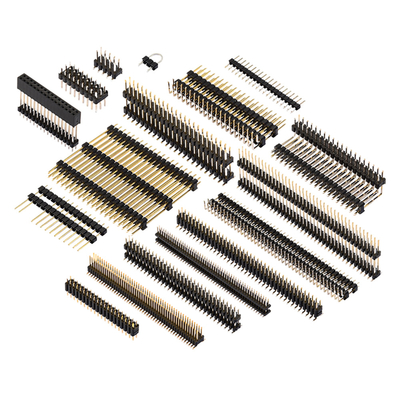

2.00mm 2.54mm Pitch Pin Header Single Dual Rows THT Type Connector Pin Header 2-40pin Industrial Electrical Connector
Product Description:
Printed Circuit Board (PCB) Connectors are widely used in various electronic products, providing reliable connection between two PCBs or between a PCB and a wire. They are available in different sizes, shapes, and configurations. PCB Connectors are designed to meet various voltage rating requirements, such as 250V/500V or others. They come with different pitch, including 1.0mm, 1.27mm, 2.0mm, 2.54mm, and 3.96mm, and are available in both Through Hole and Surface Mount terminations. These connectors are usually manufactured with PA, PBT, and LCP material, offering excellent electrical insulation and heat resistance. Edge connector, pin header, female header, receptacle, and wire-to-board connector are some of the most common types of PCB Connectors.
| Name | Pin Header connector |
| Pitch | 0.8mm/1.0mm/1.27mm/2.0mm/2.54mm/3.96mm/5.08mm |
| Type | DIP/Angle/SMT Double/Single Row |
| Insulator Color | Black/Gray/Colorized/White |
| Insulator Flammability | PA6T+30%G.F UL94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 30mΩ |
| Operation Temperature | -40℃ to +105℃ |
| Insulation Resistance(min) | 1000M ohm |
| Contact materials | Brass |
| Contact Plating | Gold/Tin over Nickel |
| Processing Temperature | 260℃ for 10 seconds |
| Packing | PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM | Accepted |
Applications:
RCH PCBC001 Printed Circuit Board Connectors are the perfect choice for edge connectors, box headers, IDC connectors, and FPC connectors. These connectors feature a 1.0mm, 1.27mm, 2.0mm, 2.54mm, or 3.96mm pitch, and a copper alloy contact material. They are available in both Through Hole and Surface Mount mounting types, and offer an IATF16949;ISO9001 certified quality assurance. The minimum order quantity is 500 pieces, with a price range from USD0.05 to USD5.0 per pcs. Delivery times are 2 to 4 weeks, and payment terms are TT, Paypal, and Western Union. The supply ability is an impressive 300000 pcs per week. These PCB connectors are a great choice for applications such as machinery and equipment, and PCBs.
Technical Parameters:
| Attribute | Details |
|---|---|
| Current Rating | 1A-10A |
| Insulator Material | PA, PBT, LCP |
| Connector Type | PCB Connector |
| Contact Material | Copper Alloy |
| Gender | Male Or Female (Female header, Box header, pin header, female socket, male pin) |
| Withstanding Voltage | 1500V AC/minute Or Others |
| Pitch | 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm |
| Application | PCB, Machinery Equipment |
| Mounting Type | Through Hole/Surface Mount (Wire-to-Board, Wire-to-Wire) |
| Contact Plating | Gold-flash/Tin-plated |
Customization:
- Brand Name: RCH
- Model Number: PCBC001
- Place of Origin: Dongguan City,China
- Certification: IATF16949;ISO9001
- Minimum Order Quantity: 500
- Price: USD0.05 to USD5.0 per pcs
- Packaging Details: 1000pcs/Bag
- Delivery Time: 2 to 4 weeks
- Payment Terms: TT, Paypal, Western Union
- Supply Ability: 300000 per week
- Pitch: 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm
- Number of Contacts: 2-100
- Insulation Resistance: 1000MΩ Min
- Operating Temperature: -40℃ To +105℃
- Contact Material: Copper Alloy
- Box header, pin header, female header, male header, IDC header
Support and Services:
We provide technical support and service for Printed Circuit Board Connectors. Our team of experienced professionals are available to answer any technical questions you may have.
We provide comprehensive technical support for our customers, including:
- Assistance with product installation and setup.
- Troubleshooting and problem resolution.
- Technical advice on product selection.
- Product training and education.
- In-depth technical support and advice.
If you have any questions or need assistance, please don't hesitate to contact us.
FAQ:
.1. where is your factory?2. How about your quality control?
All the products will be 100% checked before the shipment.
3. Do you provide a sample?
Of course,free sample with freight collect.
4. What is the lead time?
It depend on quality, generally within 7-15 days after pay for the order.
5. What is the MOQ?
In general 100pcs, but small order can be accepted.
6. Quality problems?
If there is any quality problem or question, we could offer technical support or return service.
