DIP Type Printed Circuit Board Connectors , 2.54mm Female Board To Board Connector
Product Details:
| Place of Origin: | Dongguan City,China |
| Brand Name: | RCH |
| Certification: | IATF16949;ISO9001 |
| Model Number: | PCBC001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | USD0.05 to USD5.0 per pcs |
| Packaging Details: | 1000pcs/Bag |
| Delivery Time: | 2 to 4 weeks |
| Payment Terms: | TT, Paypal, Western Union |
| Supply Ability: | 300000 per week |
|
Detail Information |
|||
| Number Of Contacts: | 2-100 | Insulation Resistance: | 1000MΩ Min |
|---|---|---|---|
| Insulator Material: | PA, PBT, LCP | Mounting Type: | Through Hole/Surface Mount |
| Connector Type: | PCB Connector | Termination Type: | THT Or SMT |
| Withstanding Voltage: | 1500V AC/minute Or Others | Voltage Rating: | 250V/500V Or Others |
| Highlight: | DIP Printed Circuit Board Connectors,Printed Circuit Board Connectors 2.54mm,Female Board To Board Connector |
||
Product Description

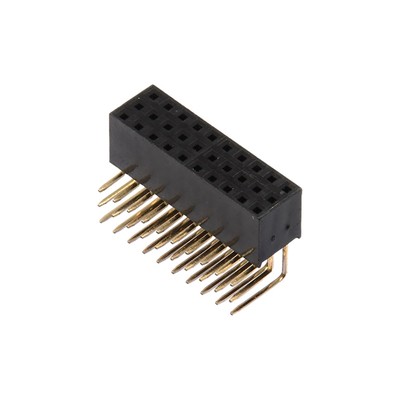

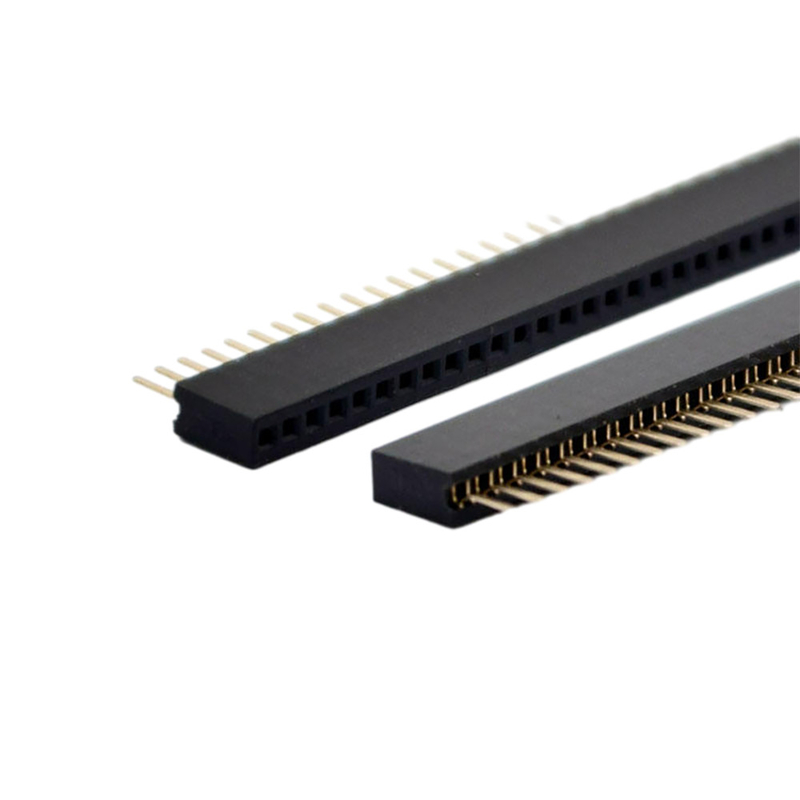

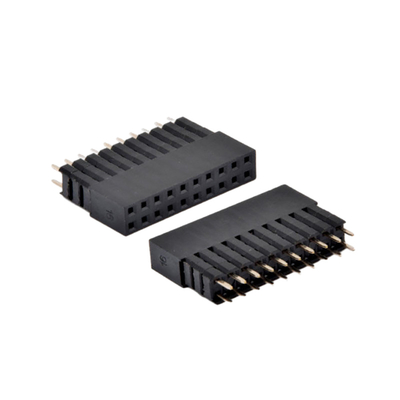

Board To Board Female Header 2.54mm Single Dual Row Right Angle DIP Type 2.54mm Female Header Connector
Product Description:
Printed Circuit Board (PCB) Connectors are essential components for connecting different parts of a circuit. They are commonly used in a wide range of electronic products and provide reliable electrical connections. Our PCB Connectors are designed for maximum durability and performance, and are suitable for a wide range of applications. Our range of PCB Connectors includes a variety of pin header and box header connectors, in both male and female versions. Voltage ratings of 250V/500V or higher are available, and our connectors feature a range of insulator materials, including PA, PBT and LCP, for superior insulation and heat resistance. Our PCB Connectors are available in both THT and SMT versions, and are suitable for a wide range of applications.
Applications:
RCH PCBC001 Printed Circuit Board Connectors are high-performance, reliable and cost-effective solutions for a wide range of applications. With a wide range of pitches from 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, these connectors are suitable for a variety of applications including PCBs, Machinery Equipment and more. They are designed to ensure reliable connections in harsh environments with operating temperatures ranging from -40℃ to +105℃. The insulation resistance is 1000MΩ min. to guarantee secure operation. Furthermore, adapters are available for 57 series printer SCSI connector and edge connector. By meeting the requirements of IATF16949;ISO9001 certification, these high-quality printed circuit board connectors are available for minimum order quantity of 500 pcs with prices ranging from USD0.05 to USD5.0 per pcs. 1000 pcs per bag, delivery time 2 to 4 weeks with payment terms including TT, Paypal, Western Union. Moreover, RCH is able to supply 300000 pcs of these printed circuit board connectors every week.
Technical Parameters:
| Parameter | Value |
|---|---|
| Connector Type | PCB Connector |
| Insulation Resistance | 1000MΩ Min |
| Gender | Male Or Female |
| Contact Material | Copper Alloy |
| Application | PCB, Machinery Equipment |
| Insulator Material | PA, PBT, LCP |
| Termination Type | THT Or SMT |
| Voltage Rating | 250V/500V Or Others |
| Withstanding Voltage | 1500V AC/minute Or Others |
| Current Rating | 1A-10A |
Customization:
Brand Name: RCH
Model Number: PCBC001
Place of Origin: Dongguan City, China
Certification: IATF16949; ISO9001
Minimum Order Quantity: 500
Price: USD 0.05 to USD 5.0 per pcs
Packaging Details: 1000pcs/Bag
Delivery Time: 2 to 4 weeks
Payment Terms: TT, Paypal, Western Union
Supply Ability: 300000 per week
Withstanding Voltage: 1500V AC/minute Or Others
Insulator Material: PA, PBT, LCP
Pitch: 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm
Number of Contacts: 2-100
Application: PCB, Machinery Equipment
Support and Services:
Printed Circuit Board Connectors Technical Support and Service
We provide comprehensive technical support and service for all Printed Circuit Board Connectors, including:
- Assistance in selection and design of Printed Circuit Board Connectors for a wide range of applications
- Technical advice on installation, troubleshooting and maintenance of Printed Circuit Board Connectors
- Fast help desk response to inquiries
- Access to a wide range of technical resources
- Software and firmware updates and upgrades
FAQ:
We are based in Guangdong, China, start from 2014,sell to Central America(12.00%),South America(10.00%),North America(8.00%),Oceania(6.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?

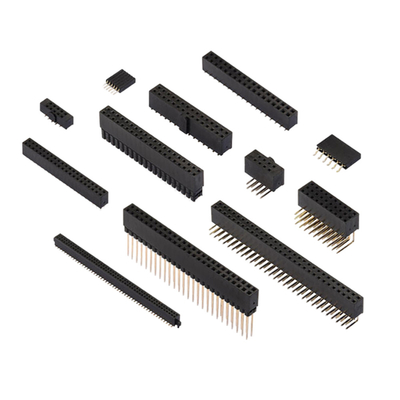

pin header,female header,box header,ejector header,board to board connector
4. why should you buy from us not from other suppliers?
Dongguan Ylies Precise Connector Co., Ltd was founded in 2003, and set up the offices in coastland and mainland of China in 2010.Ylies owns ISO9001/ISO1400 certificates, specialized in R&D and production of precision & special connectors of BTB...
5. what services can we provide?
Accepted Delivery Terms: FOB,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Cash,Escrow;
Language Spoken:English,Chinese
