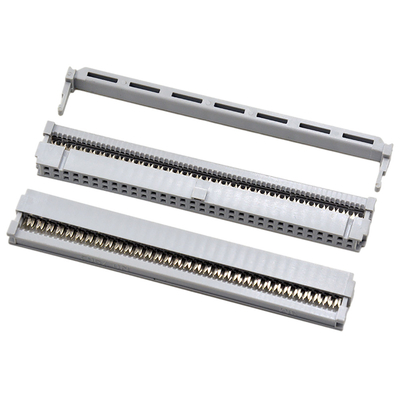

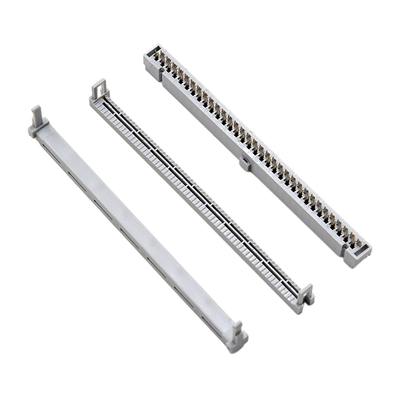

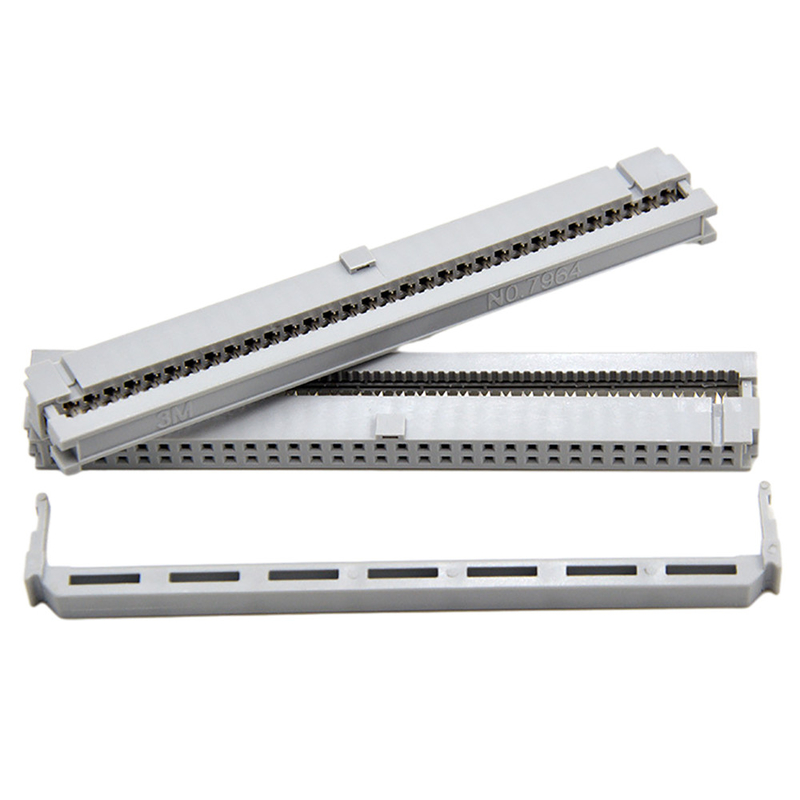

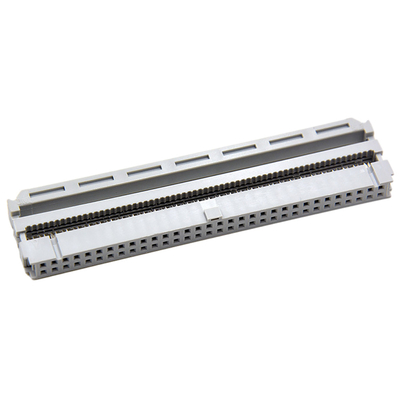

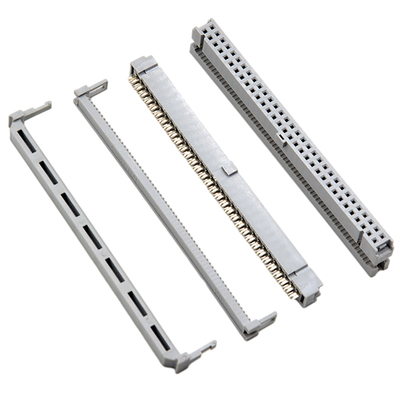

64 Pin 2.54 Mm IDC Connector Single Contact Gray Insulation For Flat Cable
Product Details:
| Place of Origin: | Dongguan City,China |
| Brand Name: | RCH |
| Certification: | IATF16949;ISO9001 |
| Model Number: | WCH001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | USD0.05 to USD5.0 per pcs |
| Packaging Details: | 1000pcs/Bag |
| Delivery Time: | 2 to 4 weeks |
| Payment Terms: | TT, Paypal, Western Union |
| Supply Ability: | 300000 per week |
|
Detail Information |
|||
| Contact: | Brass, Phosphor Bronze | Application: | Electronics,Auto, Industry,Home Applications |
|---|---|---|---|
| Insulation Resistance: | 1000MΩ Min | Name: | Wire Connector Housing |
| Connector Type: | Female Male | Pitch: | 1.0mm, 1.27mm, 2.0mm, 2.50mm, 2.54mm, 3.96mm Etc |
| Current Rating: | 2A Or Other | Contact Resistance: | 20mΩ Max |
| Highlight: | 2.54 Mm IDC Connector Single Contact,2.54 Mm IDC Connector Gray Insulation,Flat Cable 64 pin idc connector |
||
Product Description
2.54mm Idc Socket Fc Connector 6pin~64pin Single Contact Gray Insulation For Grey Or Colorful Flat Cable
Product Description:
Our wire connector housing is a reliable and durable product which provides superior performance in various electronic, auto, industrial and home applications. It features a contact resistance of 20mΩ Max, withstand voltage of AC 1500V/minute or other, and insulation resistance of 1000MΩ Min. Furthermore, our wire connector housing is available in a variety of pin numbers ranging from 2 to 50. It is specifically designed for crimp housing, centronics connectors and IDC connectors.
| Series No. | IDC25460P | |||||
| Description | 2.54MM IDC CONNECOTR 06~64PIN SINGLE CONTACT | |||||
| Standard Dimension | PA | PB | W | Length | ||
| Custom Dimension | ||||||
| Pin ways | 6P to 64P | |||||
| Alternative Plating | G/F | Tin | Sel. Gold/Tin | |||
| GO | SN | S0 | ||||
| Packing way | PE Bag /Tube/ Tray/ Plastic box/ Tape&Reel Packing. | |||||
| MOQ | 500PCS | |||||
| Delivery time | 1-2weeks after confirm order | |||||
| Engineering Specifications | Rated Current:3.0AMP | |||||
| Contact Resistance: 20mΩ Max | ||||||
| Withstand Voltage:1000V AC/DC | ||||||
| Insulation Resistance:1000MΩ Min | ||||||
| Operation Temperature: -40°c to +105°c | ||||||
| Contact Material : Brass | ||||||
| Contact Plating: Au Over Ni | ||||||
| Insulator Material :Polyester (UL94V-0) | ||||||
| Standard: PBT | ||||||
| Max.Processing Temp: 180°c for 30-60 Seconds / (200°c for 10 Seconds) | ||||||
Features:
- Product Name: Wire Connector Housing
- Contact: Brass, Phosphor Bronze
- Connector Type: Female Socket, Male Pin, Male Header, IDC Connector
- Contact Resistance: 20mΩ Max
- Pitch: 1.0mm, 1.27mm, 2.0mm, 2.50mm, 2.54mm, 3.96mm Etc
Applications:
RCH WCH001 Wire Connector Housing is a highly reliable and cost-effective solution for centronics connectors, PCB connectors and female socket applications. It is manufactured with high-grade materials including plastic PA, PBT, and LCP, and it has excellent insulation resistance, current rating, and withstand voltage. This wire connector housing is certified to meet IATF16949 and ISO9001 standards, and it is available in black, red, and blue colors. The minimum order quantity is 1000 pieces, and the price range is from USD 0.05 to USD 5.0 per piece. The packaging details are 1000pcs/bag, and the delivery time is 2 to 4 weeks. RCH WCH001 Wire Connector Housing is supplied with flexible payment terms including TT, Paypal, and Western Union, and it has a supply capacity of 300000 pieces per week.
Technical Parameters:
| Parameter | Value |
|---|---|
| Application | Electronics,Auto, Industry,Home Applications |
| Current Rating | 2A Or Other |
| Color | Black,Red,Blue Etc |
| Name | Wire Connector Housing |
| Contact | Brass, Phosphor Bronze |
| Contact Resistance | 20mΩ Max |
| Voltage Rating | 250V Or Other |
| Withstand Voltage | AC 1500V/minute Or Other |
| Pitch | 1.0mm, 1.27mm, 2.0mm, 2.50mm, 2.54mm, 3.96mm Etc |
| Insulation Resistance | 1000MΩ Min |
| Female Socket | Yes |
| Centronics Connectors | Yes |
| IDC Connector | Yes |
| PCB Connector | Yes |
Customization:
Customized Service for Wire Connector Housing
- Brand Name: RCH
- Model Number: WCH001
- Place of Origin: Dongguan City, China
- Certification: IATF16949;ISO9001
- Minimum Order Quantity: 1000
- Price: USD0.05 to USD5.0 per pcs
- Packaging Details: 1000pcs/Bag
- Delivery Time: 2 to 4 weeks
- Payment Terms: TT, Paypal, Western Union
- Supply Ability: 300000 per week
- Pin number: 2 To 50
- Insulation Resistance: 1000MΩ Min
- Contact: Brass, Phosphor Bronze
- Current Rating: 2A Or Other
- Contact Resistance: 20mΩ Max
- Female Socket
- Wire Connector Housing
- IDC Connector
Support and Services:
We provide technical support and service for wire connector housing. Our engineers are available to provide advice and assistance for installation and maintenance of the product. We also offer warranty and replacement services for any defective parts. Our customer service team is available to answer any questions about the product or provide technical help.
FAQ:
Q: What is the Brand Name of the Wire Connector Housing?
A: The Brand Name of the Wire Connector Housing is RCH.
Q: What is the Model Number of the Wire Connector Housing?
A: The Model Number of the Wire Connector Housing is WCH001.
Q: Where is the Wire Connector Housing manufactured?
A: The Wire Connector Housing is manufactured in Dongguan City, China.
Q: What certifications does the Wire Connector Housing have?
A: The Wire Connector Housing is certified with IATF16949 and ISO9001.
Q: What is the minimum order quantity for the Wire Connector Housing?
A: The minimum order quantity for the Wire Connector Housing is 1000 pcs.
