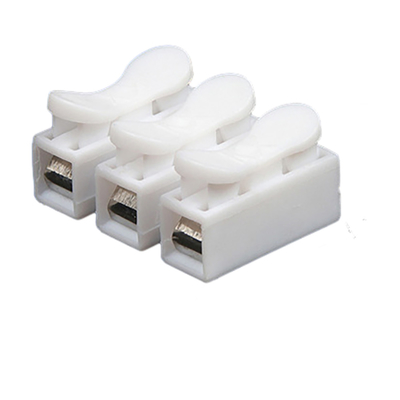

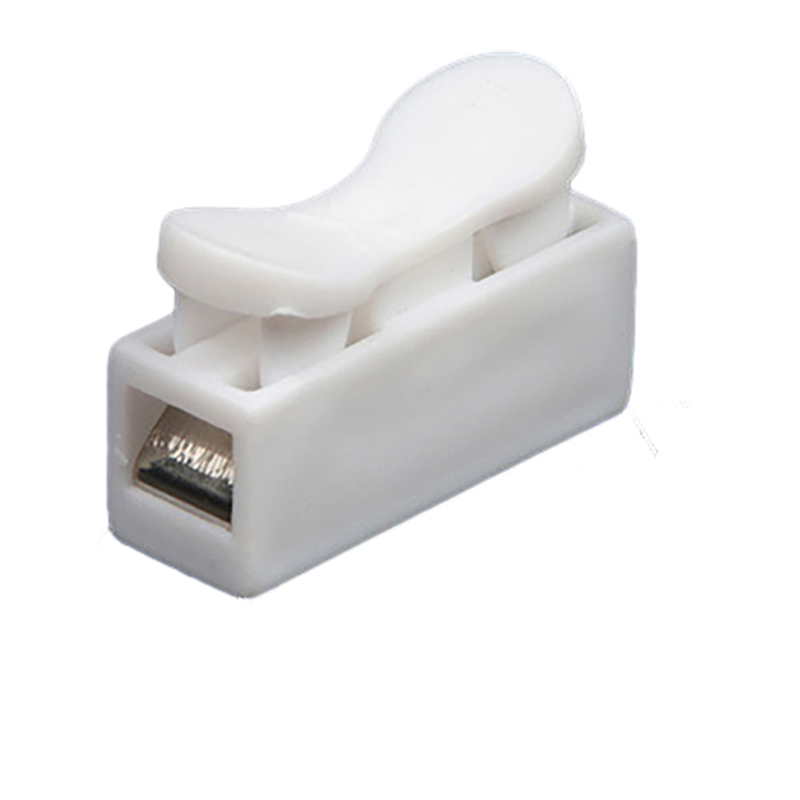

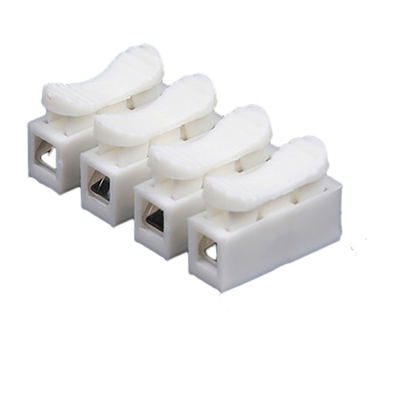

5 Pin CH2 Wire Connector Housing Screwless Self Locking Push Terminal For LED Lighting
Product Details:
| Place of Origin: | Dongguan City,China |
| Brand Name: | RCH |
| Certification: | IATF16949;ISO9001 |
| Model Number: | WCH001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | USD0.05 to USD5.0 per pcs |
| Packaging Details: | 1000pcs/Bag |
| Delivery Time: | 2 to 4 weeks |
| Payment Terms: | TT, Paypal, Western Union |
| Supply Ability: | 300000 per week |
|
Detail Information |
|||
| Connector Type: | Female Male | Contact Resistance: | 20mΩ Max |
|---|---|---|---|
| Withstand Voltage: | AC 1500V/minute Or Other | Voltage Rating: | 250V Or Other |
| Pitch: | 1.0mm, 1.27mm, 2.0mm, 2.50mm, 2.54mm, 3.96mm Etc | Pin Number: | 2 To 50 |
| Durability: | 500 Cycles Min | Contact: | Brass, Phosphor Bronze |
| Highlight: | LED Wire Connector Housing,Wire Connector Housing Screwless,5 pin wire connector Self Locking |
||
Product Description
Screwless Self-Locking Push Terminal Wire Connector Housing 5 Pin CH2 Push-In LED Lighting Fast Connector
Product Description:
Wire Connector Housing is a type of crimp housing, IDC connector and Female Socket connector for electrical wiring. It features excellent contact resistance, reaching up to 20mΩ Max. With its superior quality material of Plastic PA PBT LCP, it has great performance in extreme temperatures, ranging from -40℃ To +105℃. Moreover, it is available in various colors such as Black, Red and Blue, etc. It is a perfect choice for wire harness and offers a reliable connection.
Features:
- Product Name: Wire connector housing
- Pin Number: 2 To 50
- Color: Black, Red, Blue, Etc
- Operating Temperature: -40℃ To +105℃
- Material: Plastic PA PBT LCP
- Voltage Rating: 250V Or Other
- Style: Female Socket, Crimp housing, Cable Connector
Applications:
The RCH Wire Connector Housing, model number WCH001, is produced in Dongguan City, China and certified under IATF16949 and ISO9001. It has a minimum order quantity of 1000 and is priced between USD0.05 to USD5.0 per piece. The packaging details are 1000pcs/bag and the delivery time is 2 to 4 weeks. Payment terms include TT, Paypal, and Western Union. The supply ability is 300000 per week. The IDC connector housing has a contact resistance of 20mΩ Max, operating temperature of -40℃ To +105℃, color of black, red, blue, and an insulation resistance of 1000MΩ Min.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Product Name | Wire Connector Housing |
| Withstand Voltage | AC 1500V/minute Or Other |
| Contact Resistance | 20mΩ Max |
| Insulation Resistance | 1000MΩ Min |
| Application | Electronics,Auto, Industry,Home Applications |
| Material | Plastic PA PBT LCP |
| Pitch | 1.0mm, 1.27mm, 2.0mm, 2.50mm, 2.54mm, 3.96mm Etc |
| Voltage Rating | 250V Or Other |
| Color | Black,Red,Blue Etc |
| Contact | Brass, Phosphor Bronze |
| Current Rating | 2A Or Other |
| Product Type | Crimp housing, centronics connectors |
Customization:
We provide custom services for Wire Connector Housing. Our brand name is RCH, and our model number is WCH001. Our Wire Connector Housing is produced in Dongguan City, China, and it has been certificated with IATF16949 and ISO9001. The minimum order quantity is 1000, and the price ranges from USD0.05 to USD5.0 per pcs. We offer packaging with 1000pcs/Bag, and the delivery time is 2-4 weeks. We accept payment terms including TT, Paypal, and Western Union. Our supply ability is 300000 per week. The material of the housing is plastic PA PBT LCP. The durability of our housing is 500 cycles min. We offer various pitches, including 1.0mm, 1.27mm, 2.0mm, 2.50mm, 2.54mm, and 3.96mm. It can be applied in the electronics, auto, industry, and home applications. The operating temperature of the housing is -40℃ to +105℃. We also provide crimp housing, wire connector housing, and crimp housing with latching.
Support and Services:
At ABC Company, we understand that our customers rely on our Wire connector housing products to perform their applications and operations. As a result, we are dedicated to providing the highest quality of technical support and services.
Our technical support team is available 24/7 to answer any questions that you may have regarding our Wire connector housing products. We strive to provide prompt technical assistance for your applications and operations.
In addition to technical support, we also provide installation and maintenance services for our Wire connector housing products. Our experienced technicians are trained to ensure that your product is installed and functioning correctly.
FAQ:
Q: Are you factory/manufacturer?A: YES! We are! We have our own develop team and have cooperated together for 7 years.
Our company is one of China Holder Business Mogel
Q: Do you accept OEM/ODM?
A: We accept OEM, as well as a professional team for customer ODM services.
Q: What is your MOQ?
A: MOQ is 100pcs or one standard carton. However, In order to cooperate with you to develop your market, small quantity order is acceptable.
