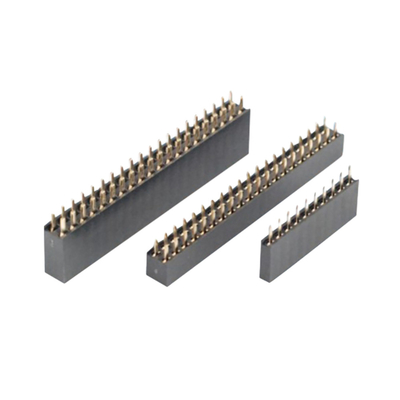

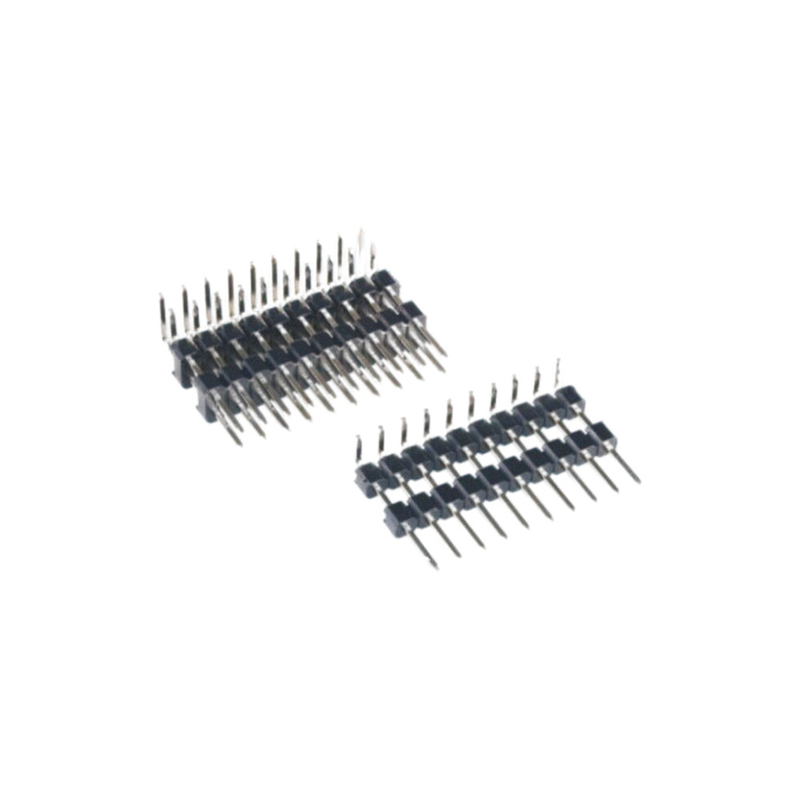

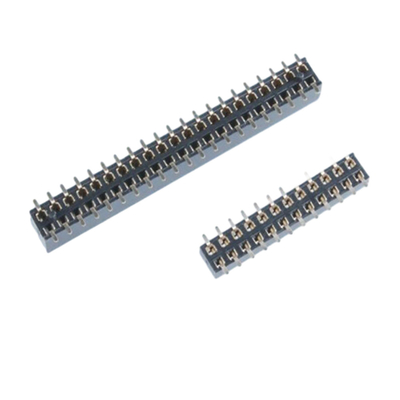

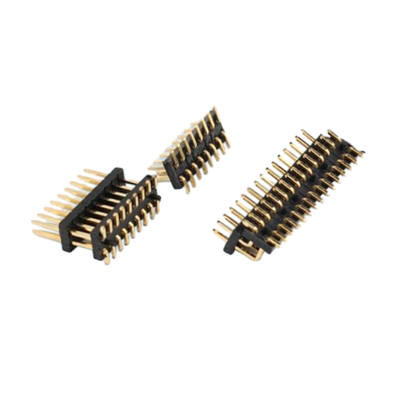

1.27mm Pitch SMT Pin Header PCB Connector Dual Row 4P To 60P THT
Product Details:
| Place of Origin: | Dongguan City,China |
| Brand Name: | RCH |
| Certification: | ISO9001 |
| Model Number: | PH001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | USD0.05 to USD5.0 per pcs |
| Packaging Details: | 1000pcs/Bag |
| Delivery Time: | 2 to 4 weeks |
| Payment Terms: | TT, Paypal, Western Union |
| Supply Ability: | 300000 per week |
|
Detail Information |
|||
| Termination Type: | THT Or SMT | Number Of Contacts: | 2-100 |
|---|---|---|---|
| Voltage Rating: | 250V/500V Or Others | Gender: | Male Or Female |
| Insulation Resistance: | 1000MΩ Min | Connector Type: | PCB Connector |
| Mounting Type: | Through Hole/Surface Mount | Pitch: | 1.0mm, 1.27mm, 2.0mm, 2.54mm |
| Highlight: | PCB SMT Pin Header Connector,1.27mm Pitch PCB SMT Connector,60P THT PCB Connector |
||
Product Description
Product Description:
Printed Circuit Board Connectors are special connectors used in PCB, machinery equipment, and other types of applications. They are designed to withstand operating temperatures ranging from -40℃ to +105℃, and withstanding voltages of up to 1500V AC/minute. These connectors have a current rating of 1A-10A and a pitch of 1.0mm, 1.27mm, 2.0mm, or 2.54mm, making them suitable for a variety of applications. Common types of Printed Circuit Board Connectors include box header, female header, edge connector, and pin header.
Features:
- Product Name: Printed Circuit Board Connectors
- Application: PCB, Machinery Equipment
- Contact Material: Copper Alloy
- Connector Type: PCB Connector
- Termination Type: THT Or SMT
- Withstanding Voltage: 1500V AC/minute Or Others
- 57 series printer SCSI connector
- Female Header
- 57 Series Printer SCSI Connector
Technical Parameters:
| Parameter | Description |
|---|---|
| Application | PCB, Machinery Equipment |
| Connector Type | PCB Connector, Female Header, Box Header, Wire-to-Board Connector, Wire-to-Wire Connector |
| Gender | Male Or Female |
| Contact Plating | Gold-flash/Tin-plated |
| Current Rating | 1A-10A |
| Voltage Rating | 250V/500V Or Others |
| Pitch | 1.0mm, 1.27mm, 2.0mm, 2.54mm |
| Termination Type | THT Or SMT |
| Withstanding Voltage | 1500V AC/minute Or Others |
| Contact Material | Copper Alloy |
Applications:
RCH's PH001 series connectors are printed circuit board connectors that offer reliable, high-performance connections for a variety of applications. The 57 series printer SCSI connector, Edge connector, Edge connector, SMT Edge connector, THT Edge connector, Edge Female connector, Edge Male connector, Edge Finger connector, Edge PCB connector, Edge Socket connector, Edge Plug connector, Edge Header connector, Edge Connector, Edge Connector, Edge Terminal connector, Edge Stacking connector, Edge FPC connector, Edge FFC connector, Edge Right Angle connector, Edge Wire to Board connector, Edge Wire to Wire connector are designed to ensure your applications run smoothly and safely. These connectors feature an insulation resistance of 1000MΩ Min, contact plating of Gold-flash/Tin-plated, and a pitch of 1.0mm, 1.27mm, 2.0mm, 2.54mm.
RCH's PH001 series connectors are certified with ISO9001, and come with a minimum order quantity of 1000 pieces at a competitive price range of USD0.05 to USD5.0 per pcs. Each bag contains 1000pcs of connectors and the delivery time is 2 to 4 weeks. Payment options include TT, Paypal, and Western Union, and the supply ability is 300000 per week.
Support and Services:
We offer technical support and service for Printed Circuit Board (PCB) connectors. Our knowledgeable support team is available to answer questions about product specifications, installation, and more.
We can provide detailed information about PCB connector types, sizes, pin-outs, features, and more.
We can provide expert advice on the installation of PCB connectors, including the proper tools and techniques for successful installation.
Our technical support team is available to assist with troubleshooting PCB connector issues, such as loose connections, intermittent issues, and more.
Our technical support and service team can provide expert advice on a variety of topics related to PCB connectors, such as choosing the right connectors for a specific application, proper handling and storage, and more.
```Packing and Shipping:
Packaging and Shipping
Printed Circuit Board Connectors will be packaged and shipped in the following manner:
- Each Printed Circuit Board Connector will be individually packaged in shrink wrap
- Packages will be labeled with the product number and description
- Connectors will be shipped in boxes or crates depending on the size of the order
- The shipping method will be determined by the customer's needs
