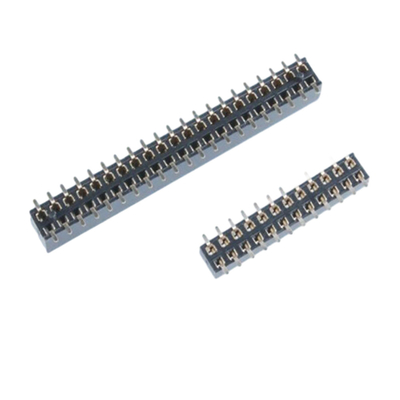

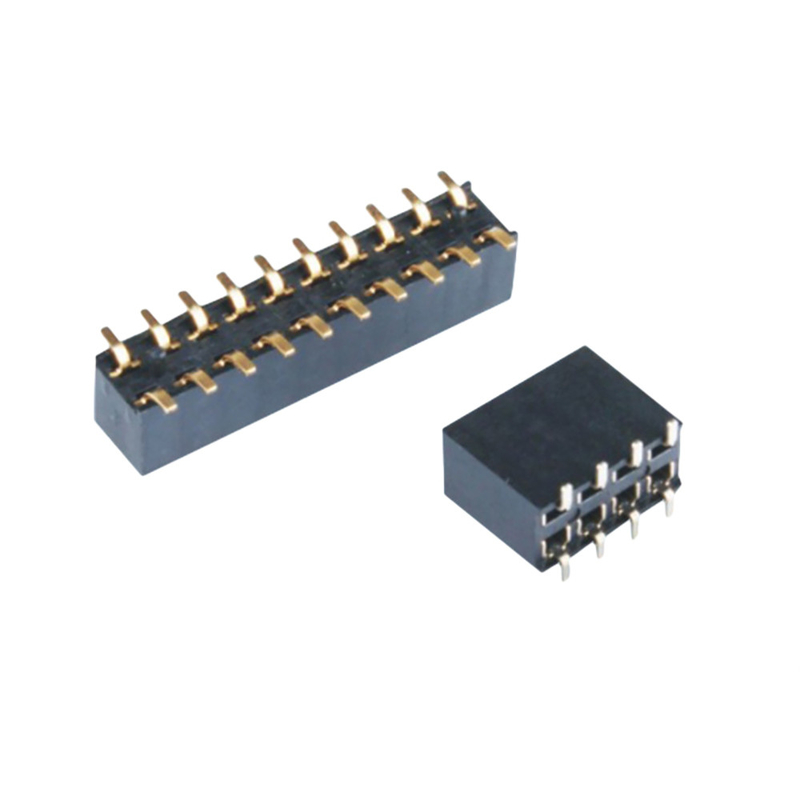

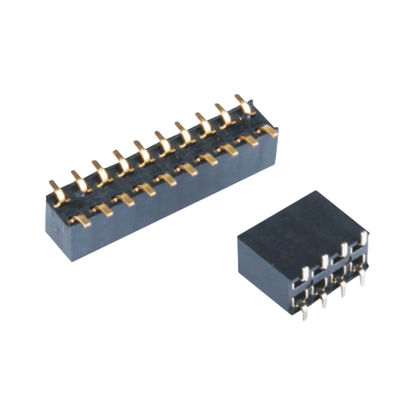

2P-40P Single Dual Row PCB Connector SMT Female Header 2.54mm Pitch
Product Details:
| Place of Origin: | Dongguan City,China |
| Brand Name: | RCH |
| Certification: | ISO9001 |
| Model Number: | PH001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | USD0.05 to USD5.0 per pcs |
| Packaging Details: | 1000pcs/Bag |
| Delivery Time: | 2 to 4 weeks |
| Payment Terms: | TT, Paypal, Western Union |
| Supply Ability: | 300000 per week |
|
Detail Information |
|||
| Gender: | Male Or Female | Number Of Contacts: | 2-100 |
|---|---|---|---|
| Withstanding Voltage: | 1500V AC/minute Or Others | Current Rating: | 1A-10A |
| Contact Material: | Copper Alloy | Application: | PCB, Machinery Equipment |
| Insulator Material: | PA, PBT, LCP | Operating Temperature: | -40℃ To +105℃ |
| Highlight: | Single Dual Row PCB Connector,SMT Female Header Connector,2.54mm Pitch PCB Connector |
||
Product Description
Product Description:
Printed Circuit Board Connectors are designed for a wide range of applications, from PCBs to machinery equipment. They are available with a variety of insulator materials, including PA, PBT, and LCP, and have an operating temperature range from -40℃ to +105℃. The number of contacts range from 2 to 100, and pitch options include 1.0mm, 1.27mm, 2.0mm, and 2.54mm. Among the products that we offer are 57 series printer SCSI connectors, female headers, pin headers, and board to board connectors.
Features:
- Product Name: 57 Series Printer SCSI Connector, Box Header, Pin Header, FFC FPC
- Withstanding Voltage: 1500V AC/minute Or Others
- Mounting Type: Through Hole/Surface Mount
- Insulator Material: PA, PBT, LCP
- Current Rating: 1A-10A
- Termination Type: THT Or SMT
Technical Parameters:
| Parameter | Value |
|---|---|
| Current Rating | 1A-10A |
| Insulation Resistance | 1000MΩ Min |
| Voltage Rating | 250V/500V Or Others |
| Application | PCB, Machinery Equipment |
| Pitch | 1.0mm, 1.27mm, 2.0mm, 2.54mm |
| Contact Material | Copper Alloy |
| Mounting Type | Through Hole/Surface Mount |
| Withstanding Voltage | 1500V AC/minute Or Others |
| Connector Type | PCB Connector |
| Gender | Male Or Female |
| Connector Type | Female Header, 57 Series Printer SCSI Connector, Pin Header, Male Header, Terminal Block, Edge Card Connector |
Applications:
RCH PH001 Printed Circuit Board Connectors are designed to be used for a variety of industrial, medical, automotive, and consumer applications. These connectors provide reliable and secure electrical connections between two or more components. With its innovative design, the connector creates a strong, low-profile connection with an extremely low contact resistance. The female header, box header, pin header and male header connectors are available in 1.0mm, 1.27mm, 2.0mm and 2.54mm pitches.
RCH PH001 Printed Circuit Board Connectors are made of copper alloy for the contact materials and PA, PBT, or LCP for the insulator materials. These connectors are available in THT and SMT termination types. Furthermore, these connectors are certified with ISO9001 and have a minimum order quantity of 1000 pieces. The price of these connectors ranges from USD0.05 to USD5.0 per piece, and they come in a packaging of 1000 pieces per bag. Delivery times range from 2 to 4 weeks, and payment terms include TT, Paypal and Western Union. RCH PH001 Printed Circuit Board Connectors have a supply ability of 300000 pieces per week.
Support and Services:
- Technical Support for Printed Circuit Board Connectors
- Troubleshooting assistance
- Component selection advice
- Design review and optimization
- Installation guidance
- Software updates
- Service for Printed Circuit Board Connectors
- Routine maintenance
- Repairs and replacements
- Component upgrades
- Testing and calibration
- Training and consultation
Packing and Shipping:
Printed circuit board connectors are typically packed in either antistatic or non-conductive bags. To increase protection, additional padding, bubble wrap and/or foam may be used. If the connectors are fragile, they can be placed into a box with additional padding.
Shipping is typically done via a standard package delivery service, such as USPS, UPS, or FedEx. Depending on the size and weight of the package, different shipping options may be available. To ensure that the connectors arrive safely, it is important to package them properly.
