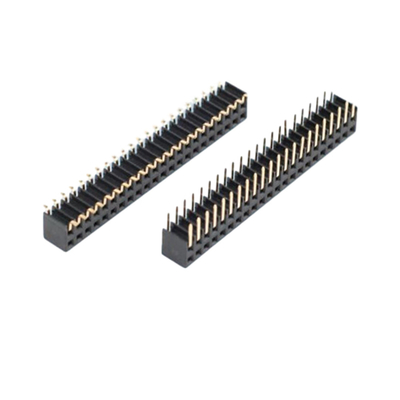

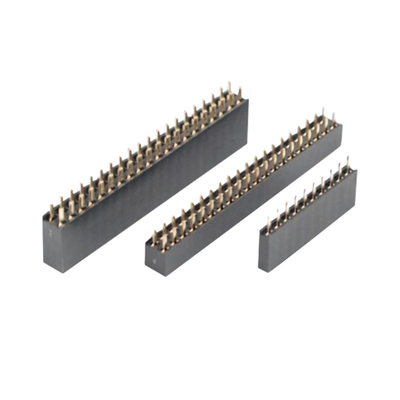

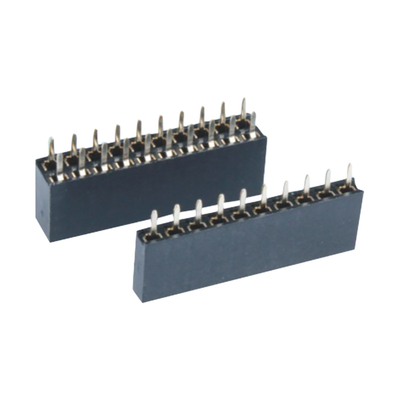

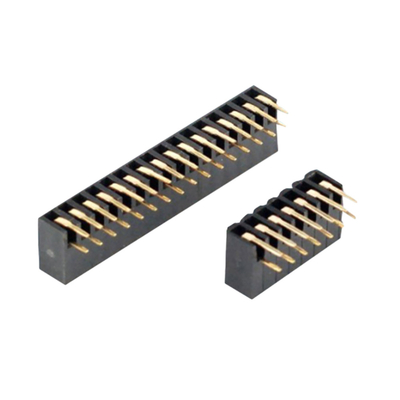

Straight Right Angle PCB Female Connector 0.5A To 3A Through Hole 2.54mm 2.0mm Pitch
Product Details:
| Place of Origin: | Dongguan City,China |
| Brand Name: | RCH |
| Certification: | ISO9001 |
| Model Number: | PH001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | USD0.05 to USD5.0 per pcs |
| Packaging Details: | 1000pcs/Bag |
| Delivery Time: | 2 to 4 weeks |
| Payment Terms: | TT, Paypal, Western Union |
| Supply Ability: | 300000 per week |
|
Detail Information |
|||
| Mounting Type: | Through Hole/Surface Mount | Termination Type: | THT Or SMT |
|---|---|---|---|
| Operating Temperature: | -40℃ To +105℃ | Current Rating: | 1A-10A |
| Connector Type: | PCB Connector | Number Of Contacts: | 2-100 |
| Contact Plating: | Gold-flash/Tin-plated | Insulation Resistance: | 1000MΩ Min |
| Highlight: | Straight Right Angle PCB Female Connector,3A PCB Female Connector,2.0mm Pitch PCB Connector |
||
Product Description
Product Description:
Printed Circuit Board Connectors (PCB Connectors) are designed to provide an efficient and reliable electrical connection between the printed circuit board and other components. They offer a wide range of voltage rating, from 250V/500V to other options, and a variety of mounting types, including through hole and surface mount. PCB Connectors are made of copper alloy for superior contact material, and come in both male and female genders with contact numbers ranging from 2 to 100. We provide a great selection of edge connectors, box headers and female headers to fulfill different needs. PCB Connectors are widely used in various applications, such as communication systems, consumer electronic products and so on.
Features:
- Product Name: Printed Circuit Board Connectors
- Contact Material: Copper Alloy
- Pitch: 1.0mm, 1.27mm, 2.0mm, 2.54mm
- Withstanding Voltage: 1500V AC/minute Or Others
- Connector Type: PCB Connector
- Current Rating: 1A-10A
- Female header
- Box header
- Female header with polarizing key
- Dual row header
Technical Parameters:
| Parameter | Value |
|---|---|
| Pitch | 1.0mm, 1.27mm, 2.0mm, 2.54mm |
| Withstanding Voltage | 1500V AC/minute Or Others |
| Connector Type | Pin Header, Edge Connector, Pin Header Connector, Header Connector, PCB Connector, Board to Board Connector |
| Gender | Male Or Female |
| Operating Temperature | -40℃ To +105℃ |
| Contact Material | Copper Alloy |
| Application | PCB, Machinery Equipment |
| Termination Type | THT Or SMT |
| Current Rating | 1A-10A |
| Insulation Resistance | 1000MΩ Min |
Applications:
RCH PH001 Printed Circuit Board (PCB) Connectors are manufactured by Dongguan City, China, and are certified by ISO9001. This high-quality product is available in minimum orders of 1,000 pieces, with prices ranging from USD 0.05 to USD 5.0 per piece. The packaging details are 1,000 pieces per bag. Delivery time is 2 to 4 weeks, and payment terms are TT, Paypal, and Western Union. RCH PH001 has a supply ability of 300,000 pieces per week.
RCH PH001 PCB Connectors are designed with connector type, contact plating, contact material, insulation resistance, and insulator material. The connector type includes pin header, edge connector, female header, and card edge connectors. The contact plating is either gold-flash or tin-plated. The contact material is copper alloy. The insulation resistance is 1000MΩ min. The insulator material is PA, PBT, or LCP.
Support and Services:
Our technical support and service team provides comprehensive assistance for Printed Circuit Board Connectors. Our team is available to answer any questions or concerns you may have regarding our products and provide solutions to any potential issues.
We offer training and support on installation and maintenance for our Printed Circuit Board Connectors, as well as technical support and troubleshooting. We also provide assistance with product selection and customization so that our customers can find the best solution for their application.
Our experienced technical staff is available to provide assistance either over the phone or through online chat, and we are committed to providing the best possible customer service.
Packing and Shipping:
Packaging and Shipping for Printed Circuit Board Connectors
We package Printed Circuit Board Connectors in static free sealed bags and shield them with bubble wrap. We use strong and durable cardboard boxes for shipping. We use trusted courier services to ensure safe and secure delivery to the customer.
