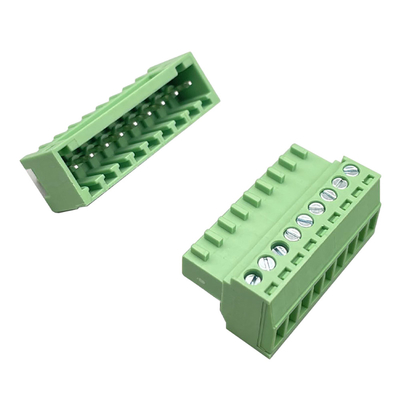

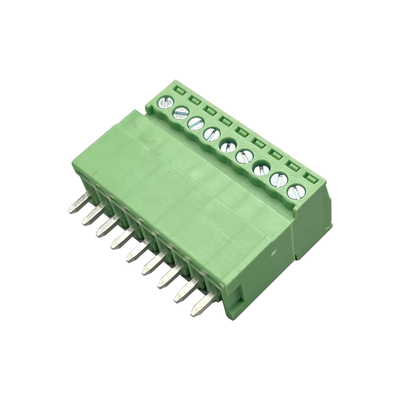

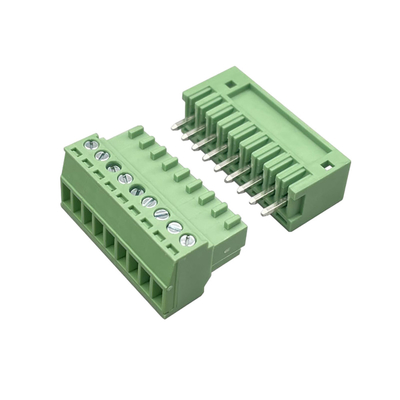

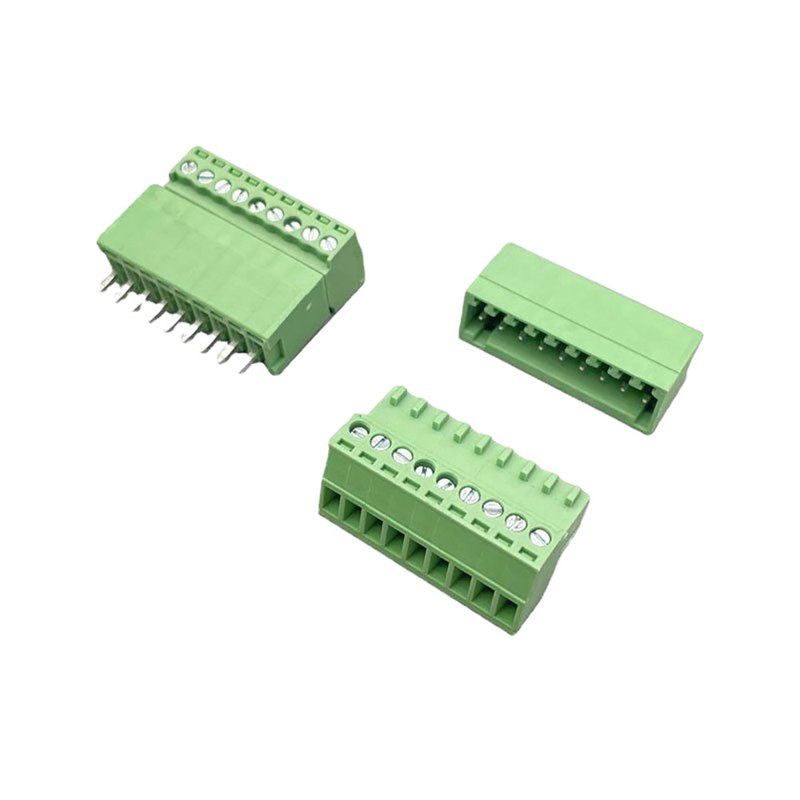

Male Female Pluggable Terminal Block Connector 3.81mm Pitch 2-16 Pins Plug In Right Angle Vertical
Product Details:
| Place of Origin: | Dongguan City,China |
| Brand Name: | RCH |
| Certification: | IATF16949;ISO9001 |
| Model Number: | WCBK001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | USD0.05 to USD5.0 per pcs |
| Packaging Details: | 1000pcs/Bag |
| Delivery Time: | 2 to 4 weeks |
| Payment Terms: | TT, Paypal, Western Union |
| Supply Ability: | 300000 per week |
|
Detail Information |
|||
| Durability: | 1000 Cycles Min | Operating Temperature: | -40℃ To +105℃ |
|---|---|---|---|
| Pin Number: | 2 To 16 | Pitch: | 3.50mm, 3.81mm, 5.08mm Etc |
| Name: | Wire Connector Housing | Color: | Black,Green,Blue Etc |
| Insulation Resistance: | 1000MΩ Min | Withstand Voltage: | AC 1500V/minute Or Other |
| Highlight: | Pluggable Terminal Block Connector,3.81mm Pitch Terminal Block Connector,16 Pins Terminal Block Connector |
||
Product Description
3.81mm Pitch 2-16pins Plug-In Right Angle Vertical Male Female 3.81 Pluggable Terminal Block Connector
Product Description:
Wire Connector Housing is a reliable product for your needs. It comes in various pitches, such as 3.50mm, 3.81mm, and 5.08mm, and is available in different colors such as black, green, and blue. It has a wide operating temperature range of -40℃ to +105℃, and comes in both female and male connector types with brass and phosphor bronze contacts. It is suitable for centronics connectors, crimp contacts, and screw terminals.
The product is designed for quick and easy installation, and its robust construction ensures a high degree of reliability. It provides a secure connection for your wires, making it the perfect choice for a variety of applications. Its superior quality and strong performance make it the ideal choice for your needs.
Wire Connector Housing is the perfect solution for your wiring needs. It is reliable, durable, and offers a secure connection. Its various features make it the ideal choice for a variety of applications. So, if you are looking for a reliable, secure, and cost-effective connector, then Wire Connector Housing is the perfect choice for you.
Features:
- Product Name: Wire Connector Housing
- Material: Plastic PA PBT LCP
- Pin number: 2 To 16
- Withstand Voltage: AC 1500V/minute Or Other
- Connector Type: Female Male
- Pitch: 3.50mm, 3.81mm, 5.08mm Etc
Technical Parameters:
| Parameter | Specification |
|---|---|
| Connector Type | IDC Connector, Female Socket, IDC Connector Housing |
| Pitch | 3.50mm, 3.81mm, 5.08mm Etc. |
| Current Rating | 2A or Other |
| Voltage Rating | 250V or Other |
| Withstand Voltage | AC 1500V/minute or Other |
| Contact Resistance | 20mΩ Max |
| Contact | Brass, Phosphor Bronze |
| Durability | 1000 Cycles Min |
| Application | Electronics, Auto, Industry, Home Applications |
| Color | Black, Green, Blue Etc. |
Applications:
Wire Connector Housing is a brand-name RCH product with model number WCBK001, manufactured in Dongguan City, China and certified by IATF16949 and ISO 9001. It comes with a minimum order of 1000 pieces and a price range of USD 0.05 to USD 5.0 per piece. Packaging details include 1000 pieces per bag, with a delivery time of 2 to 4 weeks and payment terms of TT, Paypal, and Western Union. It has a supply ability of 300000 pieces per week and features an insulation resistance of 1000MΩ min, a durability of 1000 cycles min, pin number of 2 to 16, and a range of colors such as black, green, and blue. This product is mainly used for centronics connectors, IDC connector, female socket connectors, and male plug connectors.
Packing and Shipping:
Packaging and Shipping for Wire Connector Housing:
- The Wire Connector Housing should be packaged in a box or other suitable container.
- The box should be sealed with a suitable closure to prevent moisture or dust from entering.
- The box should be labeled with the product name, quantity, and expiration date.
- The box should be shipped with a courier service or other approved mode of transport.
