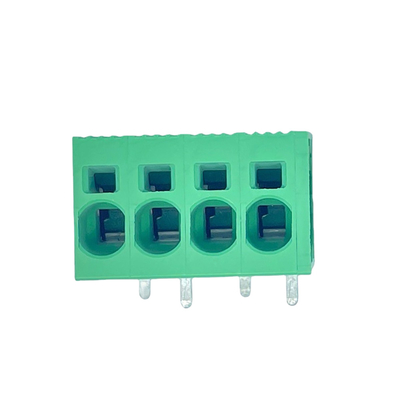

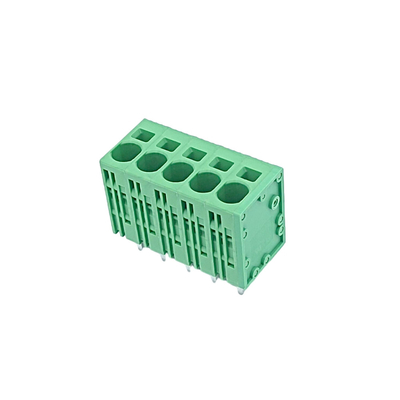

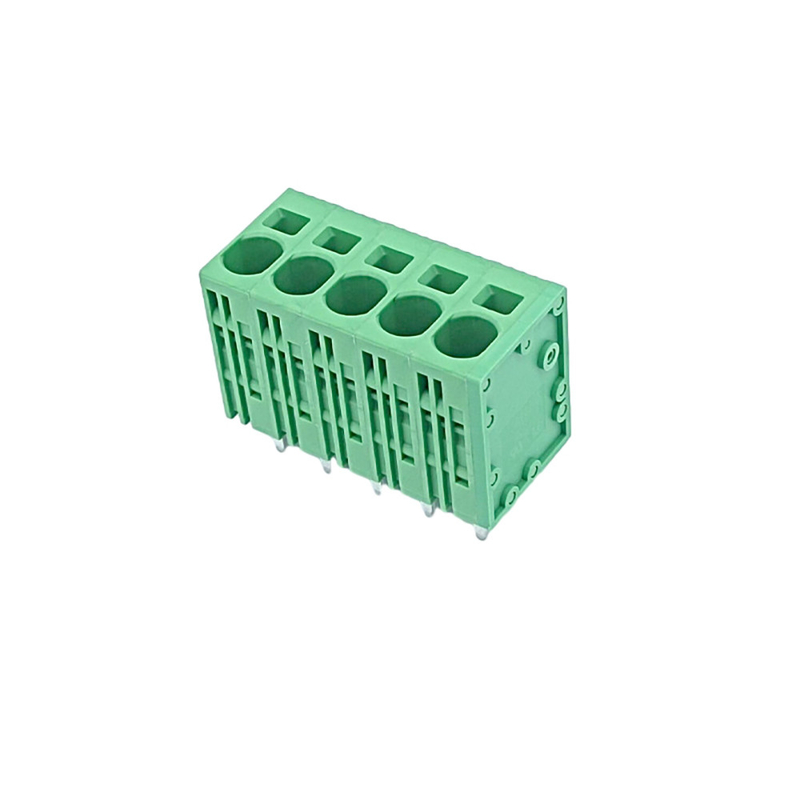

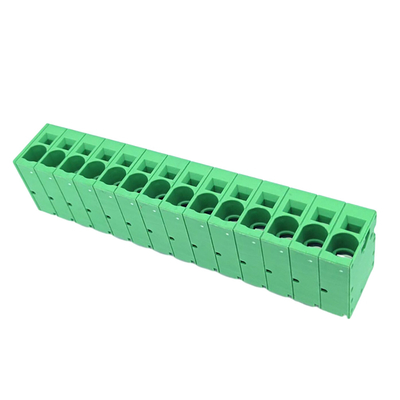

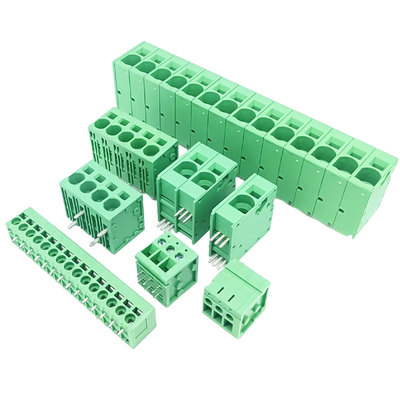

Pluggable Terminal Block Screw Terminal Block 3.5mm/3.81mm/5.0mm/5.08mm/7.5mm/7.62mm Pitch Barrier Terminal Blocks
Product Description:
Wire Connector Housing is a female socket IDC connector housing designed to provide durable and reliable electrical connections between wires. It features a pitch of 3.50mm, 3.81mm, 5.08mm and more to meet various connection requirements. The product is made of high-quality plastic PA PBT LCP to ensure its durability and reliability, and is tested to sustain over 1000 cycles of plugging and unplugging. It is designed to work within an operating temperature range of -40℃ to +105℃ and has a contact resistance of 20mΩ max. This Wire Connector Housing is a reliable and cost-effective solution for creating secure electrical connections.
Features:
- Product Name: Wire Connector Housing
- Material: Plastic PA PBT LCP
- Insulation Resistance: 1000MΩ Min
- Color: Black,Green,Blue Etc
- Application: Electronics,Auto, Industry,Home Applications
- Withstand Voltage: AC 1500V/minute Or Other
- IDC Connector: Female Socket Connector
Technical Parameters:
| Name |
Crimp Housing |
| Application |
Electronics, Auto, Industry, Home Applications |
| Operating Temperature |
-40℃ To +105℃ |
| Withstand Voltage |
AC 1500V/minute or Other |
| Pin number |
2 To 16 |
| Color |
Black, Green, Blue Etc. |
| Pitch |
3.50mm, 3.81mm, 5.08mm Etc. |
| Insulation Resistance |
1000MΩ Min |
| Durability |
1000 Cycles Min |
| Current Rating |
2A or Other |
| Female Socket |
Yes |
| IDC Connector |
Yes |
Applications:
RCH WCBK001 Wire Connector Housing is a reliable and quality product, manufactured by Dongguan City,China, certified with IATF16949 and ISO9001. It is made of plastic PA PBT LCP with a voltage rating of 250V or other, contact material of brass and phosphor bronze, and withstand voltage of AC 1500V/minute or other. The minimum order quantity is 1000 pieces, and the price is from USD0.05 to USD5.0 per pcs. The delivery time is 2 to 4 weeks, and the payment terms are TT, Paypal, or Western Union. The supply ability is 300000 pieces per week, and the packaging details are 1000pcs/Bag. It is widely used for centronics connectors, Crimp housing, wire harness connector, connectors, and housing connector.
Packing and Shipping:
Packaging and Shipping for Wire Connector Housing:
- The wire connector housing will be packaged in a protective carton.
- The carton will be sealed with strong adhesive tape.
- The product will be shipped via air freight, ground transportation, or sea freight.
- The product will be shipped with appropriate insurance coverage.
FAQ:
Q1: What is the Brand Name of the Wire Connector Housing?
A1: The Brand Name is RCH.
Q2: What is the Model Number of the Wire Connector Housing?
A2: The Model Number is WCBK001.
Q3: Where is the Place of Origin of the Wire Connector Housing?
A3: The Place of Origin is Dongguan City, China.
Q4: What is the Minimum Order Quantity of the Wire Connector Housing?
A4: The Minimum Order Quantity is 1000.
Q5: What are the Payment Terms of the Wire Connector Housing?
A5: The Payment Terms are TT, Paypal, Western Union.
