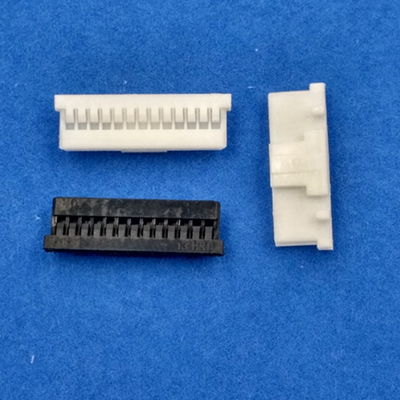

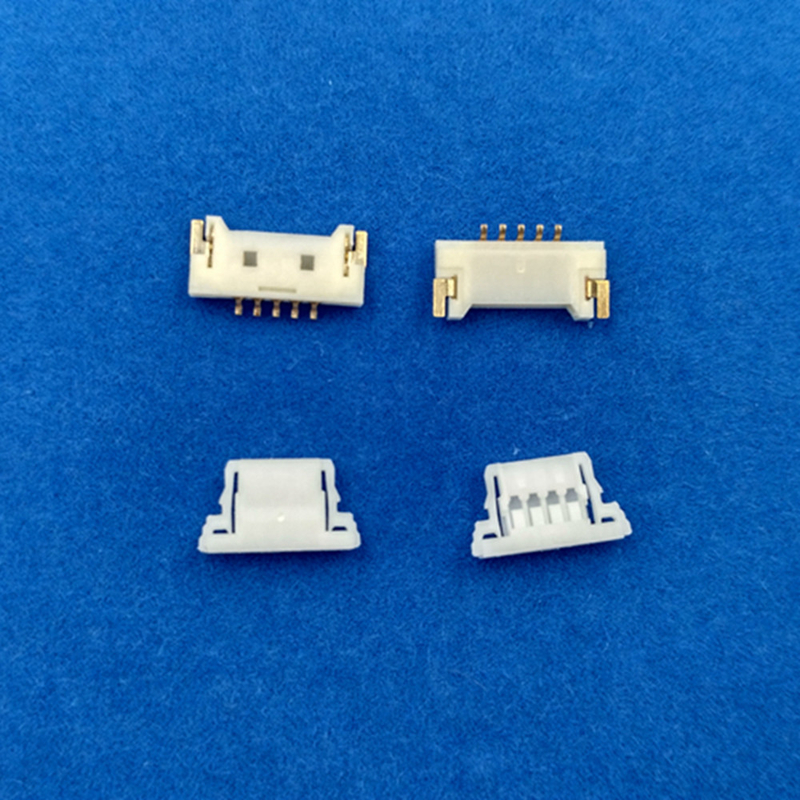

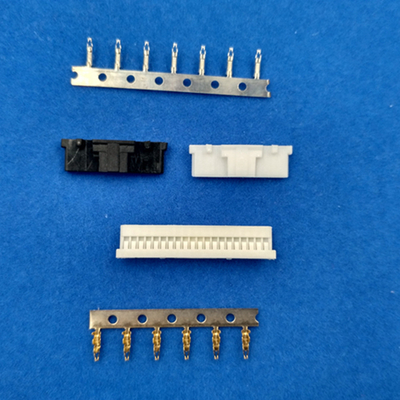

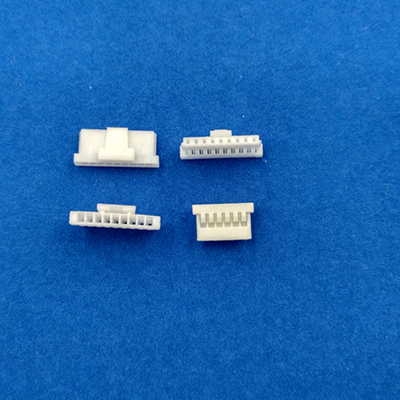

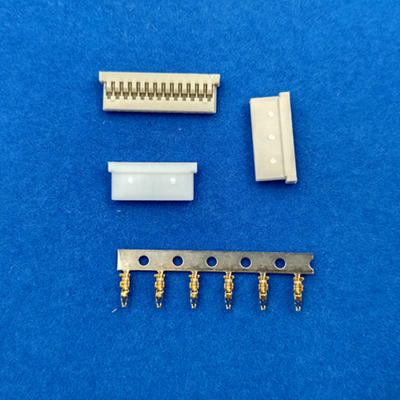

Female Socket Wire Connector Housing 1.25mm Pitch DF14 Connector Equivlent Home 40C To 85C
Product Details:
| Place of Origin: | Dongguan City,China |
| Brand Name: | RCH |
| Certification: | IATF16949;ISO9001 |
| Model Number: | WCBK001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | USD0.01 to USD5.0 per pcs |
| Packaging Details: | 1000pcs/Bag |
| Delivery Time: | 2 to 4 weeks |
| Payment Terms: | TT, Paypal, Western Union |
| Supply Ability: | 300000 per week |
|
Detail Information |
|||
| Withstand Voltage: | AC 1500V/minute Or Other | Pin Number: | 2 To 40 |
|---|---|---|---|
| Contact Resistance: | 20mΩ Max | Pitch: | 0.5mm To 7.50mm Etc |
| Voltage Rating: | 250V Or Other | Color: | Black,Whie/Yellow/Red Etc |
| Insulation Resistance: | 1000MΩ Min | Contact: | Brass, Phosphor Bronze |
| Highlight: | Female Socket Wire Connector Housing,1.25mm Wire Connector Housing |
||
Product Description
1.25mm Pitch DF14 Connector Equivlent Home Applications -40C To 85C Wire Connector Housing
Product Description:
Wire Connector Housing is a kind of centronics connectors with Female Socket that is widely used in many applications such as Electronics, Industry and Home Applications. It has high performance in contact, color and voltage rating. The contact is made of Brass and Phosphor Bronze, and it is available in different colors like black, white/yellow/red and so on. The voltage rating can reach up to 250V or other higher ones. The current rating is 0.5A at least. In addition, Wire Connector Housing is also lightweight and compact, and easy to install.
Features:
- Product Name: Wire Connector Housing
- Pin number: 2 To 40
- Connector Type: Female / Male
- Application: Electronics,Industry,Home Applications
- Pitch: 0.5mm To 7.50mm Etc
- Material: PA66 PAT PBT LCP
- Features:
- Crimp housing
- Wire connector housing
- Female Socket
- Male Pin
- Electrical Wire Connector
Technical Parameters:
| Parameter | Value |
|---|---|
| Connector Type | Female/Male Socket, Centronics Connectors, Crimp Housing |
| Pitch | 0.5mm To 7.50mm Etc |
| Pin number | 2 To 40 |
| Contact | Brass, Phosphor Bronze |
| Contact Resistance | 20mΩ Max |
| Durability | 1000 Cycles Min |
| Current Rating | 0.5A Min |
| Voltage Rating | 250V Or Other |
| Color | Black, White/Yellow/Red Etc |
| Name | Wire Connector Housing |
Applications:
Wire Connector Housing, with brand name RCH and model number WCBK001, is a product made in Dongguan City, China. It is certified by IATF16949;ISO9001, and comes with a minimum order quantity of 1000. The price of each piece is from USD0.01 to USD5.0, and it is usually packed with 1000pcs/bag. The delivery time is 2 to 4 weeks, and the payment terms are TT, Paypal, and Western Union. The supply ability is 300000 pieces per week, and it is equipped with 2 to 40 pins. The withstand voltage can be up to AC 1500V/minute or other. It comes in different connector types such as centronics connectors, crimp housing, female socket, female plug, male plug, male socket, female pin, and male pin.
Support and Services:
Our technical support and service for Wire Connector Housing includes:
- Installation and configuration assistance
- Troubleshooting and problem solving
- Product maintenance and repair
- Software updates and upgrades
- Technical advice and training
Packing and Shipping:
The Wire Connector Housing is packaged in a sealed bubble wrap and placed in a corrugated box for shipping. The box is then sealed with a strong adhesive tape. The box is labeled with the product details, such as the product name, model number, quantity, and return address.
The box is placed in another larger corrugated box, which is then filled with cushioning material such as bubble wrap or foam peanuts. The larger box is sealed with the same adhesive tape, and labeled with the same details as the smaller box.
The larger box is then placed in a shipping carton, which is also labeled with the same details. The shipping carton is then sealed with a strong adhesive tape, and the shipping address is printed on the outside of the carton.
The shipping carton is then placed on a pallet, and the pallet is shrinkwrapped to secure the carton and protect it during shipping. The pallet is then labeled with the same details as the shipping carton.
